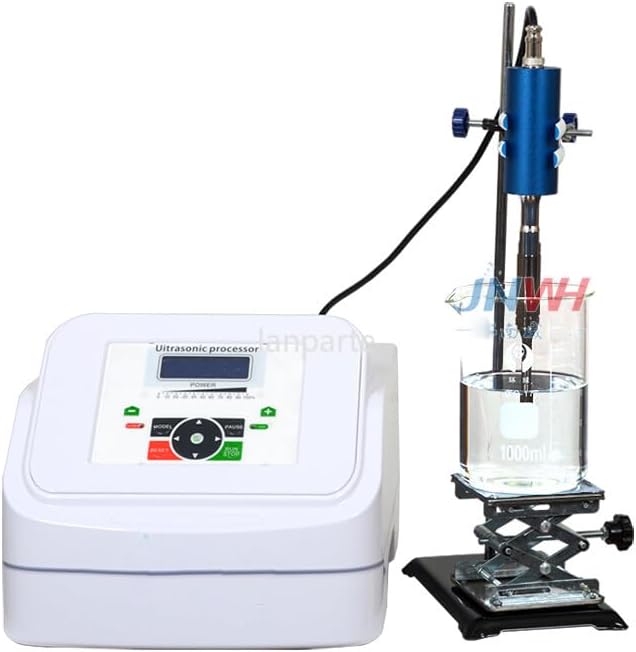

Lab Digital Ultrasonic Homogenizer, Cell Disruptor & Sonicator, Handheld/Desktop with LCD, Titanium Probes (Φ6/10mm), 20kHz, 110-220V(6mm 10mm probes)

The Shengwin 800W Digital Ultrasonic Homogenizer is a powerful and versatile professional laboratory instrument that combines efficient ultrasonic processing capabilities with intelligent operation control. Operating at a 20kHz frequency with a maximum output of 800W, it generates intense cavitation effects, making it an ideal tool for cell disruption, tissue homogenization, nanomaterial dispersion, emulsion preparation, and accelerated chemical reactions. Designed for flexibility, it can be used as a handheld device for small-scale or targeted processing, or mounted on the included adjustable-height lifting bracket for stable benchtop operation and unattended runs. The core component, the probe, is constructed from high-strength titanium alloy (standard with Φ6mm and Φ10mm, other sizes optional), ensuring durability and easy cleaning. The intelligent control system features an LCD digital display, allowing users to precisely set ultrasonic time (1 second to 99 hours), power intensity, and pulse mode. It also includes automatic fault alarm functions, guaranteeing controllability and repeatability in experimental processes. Core Application Fields:Biology & Medical Research: Disruption of bacteria/yeast/animal & plant cells, organelle extraction, tissue homogenization.Nanotechnology & Materials Science: Dispersion and de-agglomeration of nanoparticles (e.g., graphene, carbon nanotubes, silica).Chemistry & Pharmaceuticals: Accelerated dissolution, promotion of chemical reactions (sonochemical synthesis), nanoemulsion preparation.Food & Cosmetics: Ingredient homogenization, flavor extraction, sample preparation.Attributes & Values:Brand: ShengwinType: Handheld/Benchtop Ultrasonic Homogenizer / Cell Disruptor / SonicatorCondition: NewMaximum Power: 800WFrequency: 20 kHzVoltage: 110V-220V (Wide Voltage, Auto-adapting)Control: Digital, LCD DisplayTimer Range: 1 second to 99 hoursAdjustable Parameters: Ultrasonic Time, Power, Pulse ModeStandard Probe Diameters: Φ6mm, Φ10mm (Included)Optional Probe Diameters: Φ2mm, Φ4mm, Φ8mm (Available upon request)Probe Material: Titanium AlloyUltrasonic Amplitude: Φ6mm: 100-300μm; Φ10mm: 300-600μmProcessing Capacity: 1 ~ 500 mlKey Feature: Adjustable Lifting Bracket, Automatic Fault AlarmIntended Use: Biological Laboratory, Medical Laboratory, Chemical Laboratory, Nanomaterial ResearchApplications: Cell Disruption, Homogenization, Emulsification, Extraction, Dispersion, SonicationUnit Weight: 6.8 kgPackage Weight: 14 kgPackage Size: 530 x 400 x 350 mmCountry/Region of Manufacture: ChinaMPN: Does not applyPackage Includes: 1 x Main Unit, 1 x Adjustable Lifting Bracket, 2 x Titanium Probes (Φ6mm & Φ10mm)

• 【800W High Power & Intelligent Control】 Delivers powerful cavitation with 800W of processing power at 20kHz. Features an intelligent digital control system with an LCD for precise settings of time, power, and pulse mode, ensuring experimental accuracy and repeatability.
• 【Dual Handheld/Benchtop Flexibility】 Innovative dual-use design. Use as a handheld unit for flexible, localized treatment, or mount it on the included adjustable lifting bracket for stable, hands-free benchtop operation—ideal for prolonged or high-volume sample processing
• 【Titanium Alloy Probes & Multiple Sizes】 Includes two high-strength titanium alloy probes (Φ6mm & Φ10mm) for corrosion resistance and long life. Additional probe sizes (e.g., Φ2mm, 4mm, 8mm) are available to suit different sample volumes and viscosities, maximizing versatility.
• 【Extended Timer & Wide Processing Capacity】 Equipped with a programmable timer ranging from 1 second to 99 hours, supporting both continuous and pulse operation. Handles sample volumes from 1ml to 500ml, accommodating everything from micro-samples to medium-scale preparations.
• 【Multidisciplinary Lab Solution】 A versatile sample preparation tool for biology (cell disruption), chemistry (reaction acceleration, dispersion), nanomaterials (nanoparticle de-agglomeration), pharmaceuticals, and food science. The lifting bracket and smart alarm features enhance both safety and automation for laboratory workflows.
